Deep Marking Machine, High Depth Dot Peen Marking Machine

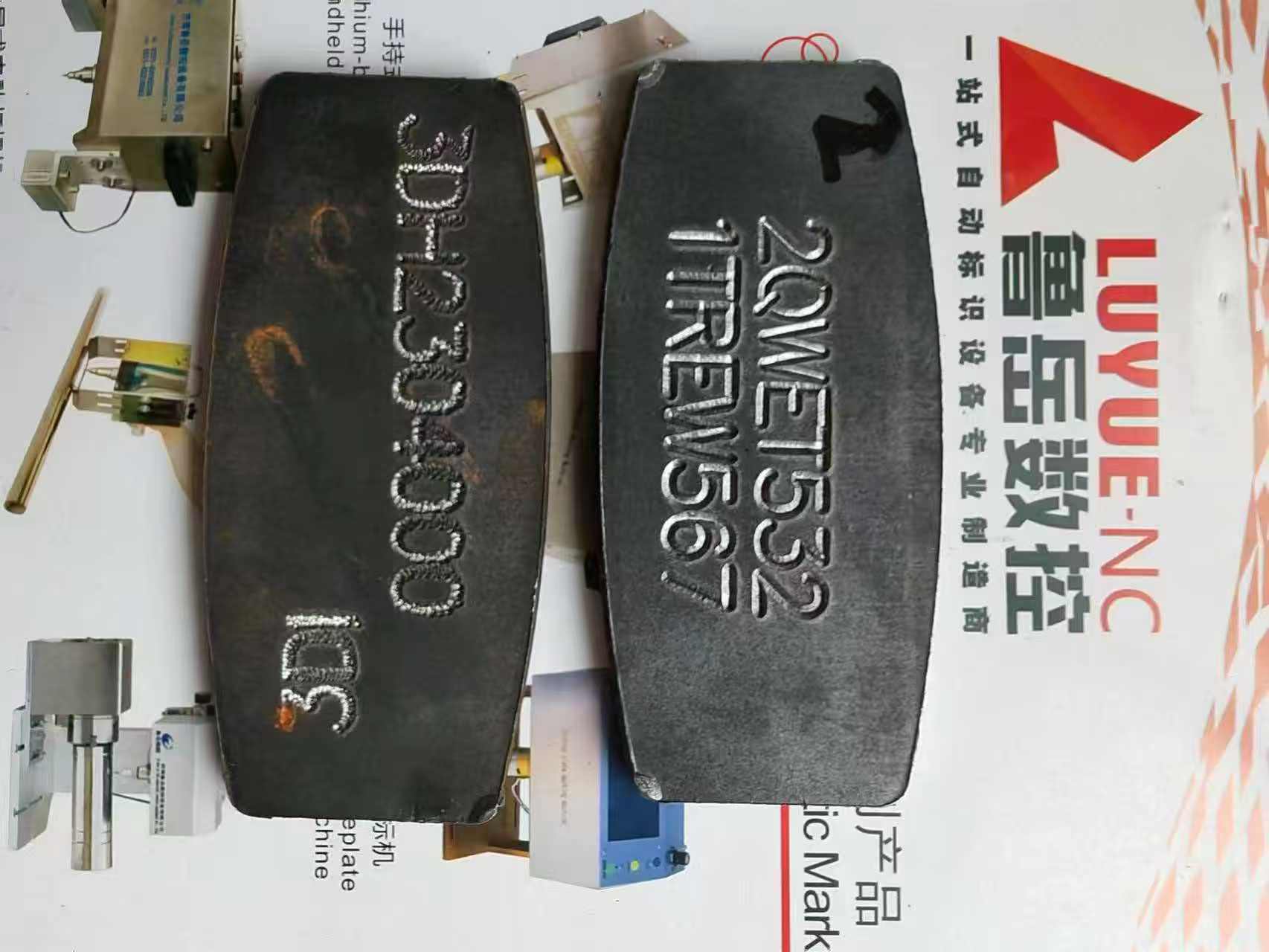

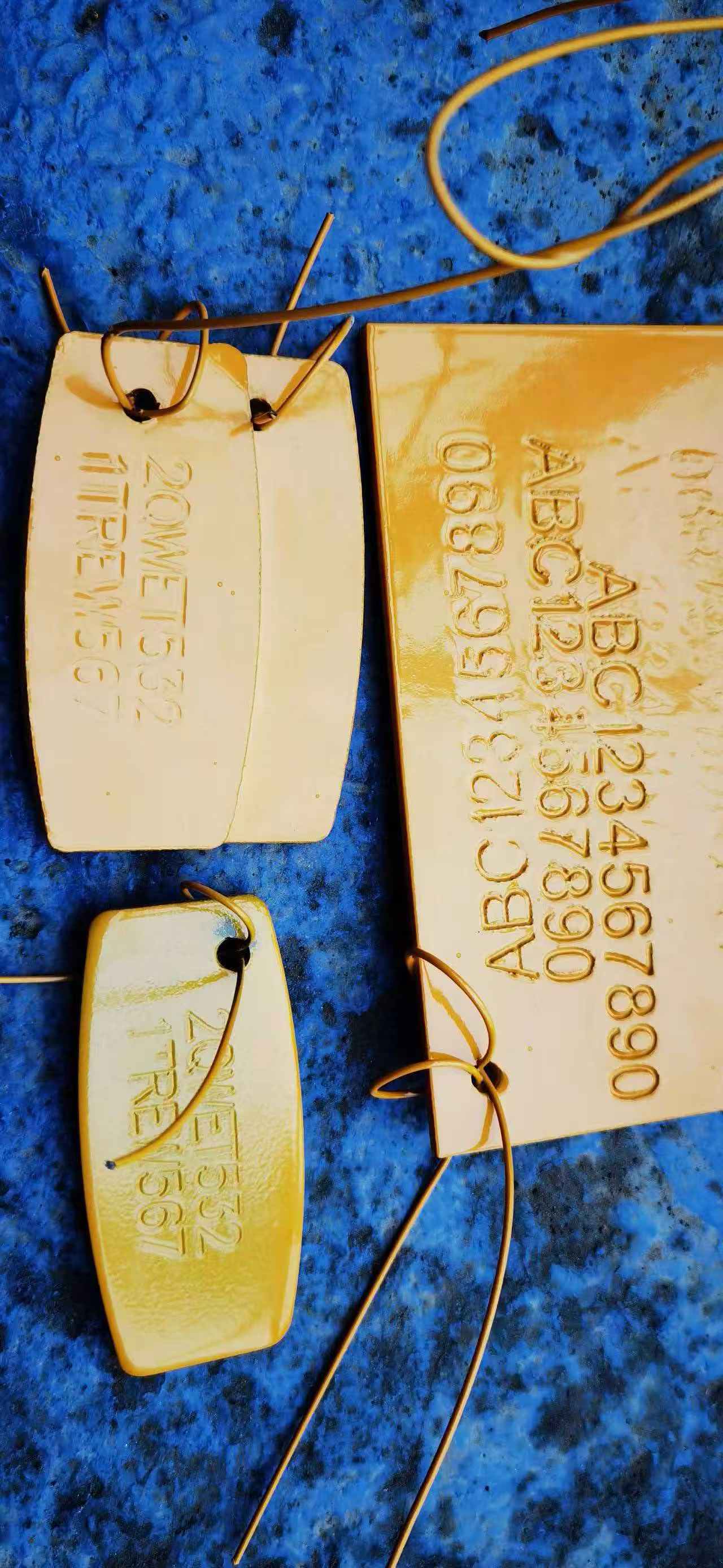

The high depth portable pneumatic dot peen marking machine is mainly used for metal plate and truck vin number marking, mechanical metal parts engraving, and other industrial medium and big size parts engraving and marking. It is very helpful for your product identification traceability.

The whole machine adopts imported industrial components, ensure the marking accuracy and long service life.

Work Principle:

The computer controls the marking needle to move in the X, Y two-dimensional plane according to the trajectory of the graphic characters edited by the computer. At the same time, the marking needle performs high-frequency impact motion on the workpiece under the action of compressed air, thereby forming a corresponding on the workpiece. Graphic or characters.

Machine Parameters:

1. Marking range:150mm × 80mm

2. Product model: LYQD-1508G

3. Marking speed: 1-6 characters / second,

4. Marking depth: 0.1-1.2mm, depending on the hardness of the material;

5. Marking position: plane of workpiece (two-dimensional, three-dimensional)

6. Marking content: English, numbers, punctuation, Chinese, graphics, two-dimensional code, barcode, etc .;

7. Marking function: It can automatically print the production serial number (the number that increases regularly); VIN code, production date, etc.

8. Control method: human-machine dialogue;

9. Material hardness requirements: HRC≤75:

10. Machine weight: Marking Head is 9kg,  total weight 18kg.

11. Marking head size: 26cm*19cm*23.5cm.
