Handheld Marking Machine for Flanges

Handheld Marking Machine for Flanges, When mark curved surfaces on larger diameter flanges or the other workpieces, the weight of the workpiece is very high and it is not easy to move, then we are better to use a light marking machine.

Send Inquiry

Product Description

Handheld Marking Machine for Flanges made in China can be bought with low price from luyue, which is a professional high quality products manufacturers and factory in China. We provide customized  service.

When mark curved surfaces on larger diameter flanges or the other workpieces, the weight of the workpiece is very high and it is not easy to move, then we are better to use a light marking machine.

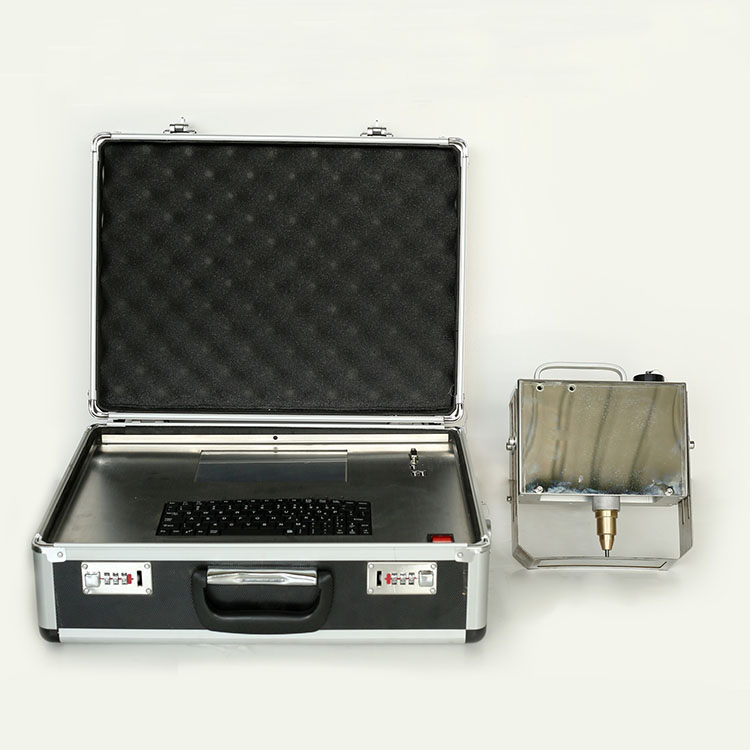

This lightweight hand-held marking machine is highly convenient, allowing users to shuttle between various workpieces.

If you want to mark small workpieces, the fixing ability and stability of the marking machine are very important, but on large workpieces, the high quality of the workpiece brings extremely high stability, and the marking effect is no longer relying on stability, but the speed of marking extremely depends on the convenience of the marking machine.

The larger the diameter of the flange, the more the surface to be marked tends to be flat, so even a machine designed to mark on a flat surface can mark the flange.

Therefore, the hand-held marking machine is more suitable for marking on heavy flanges or the other workpieces that are not easy to move than the heavy bench-top marking machine.

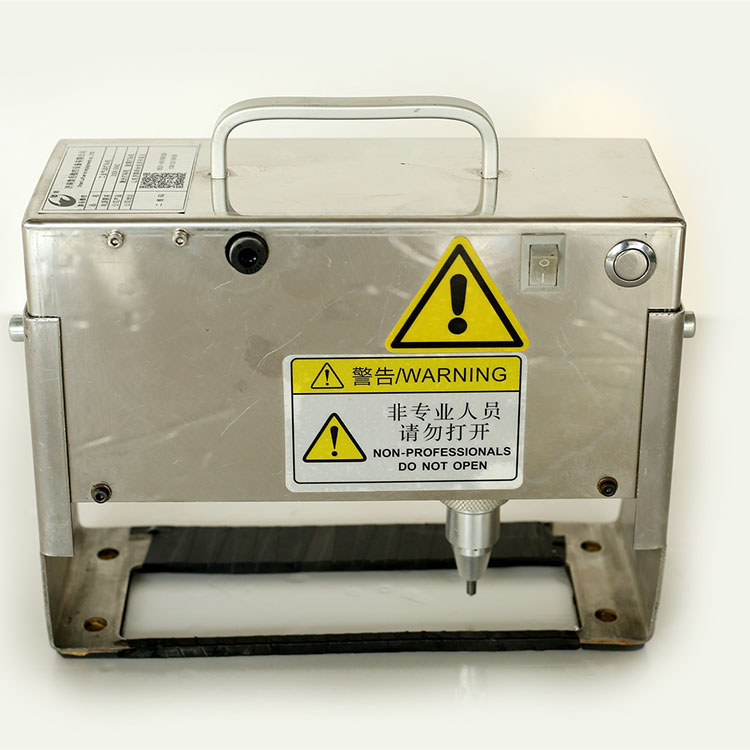

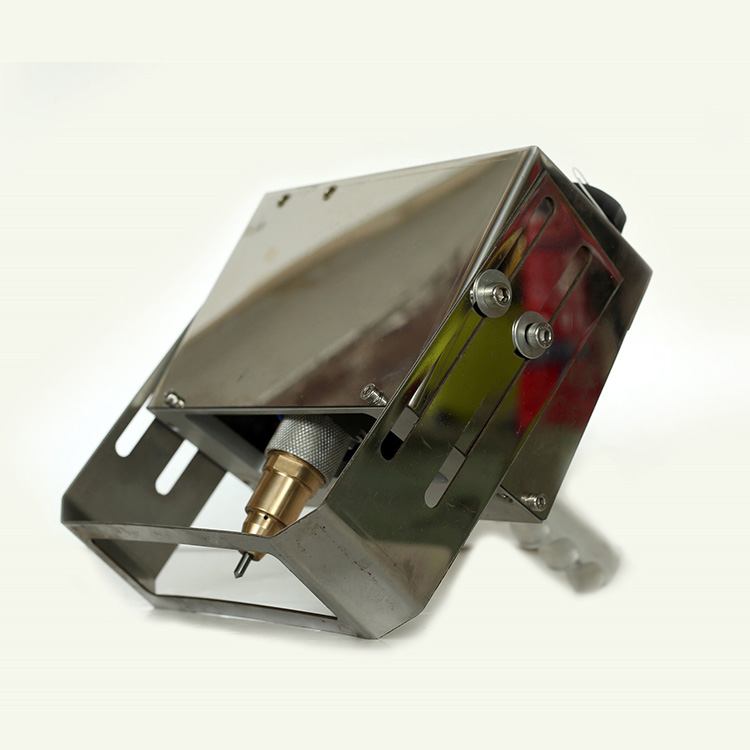

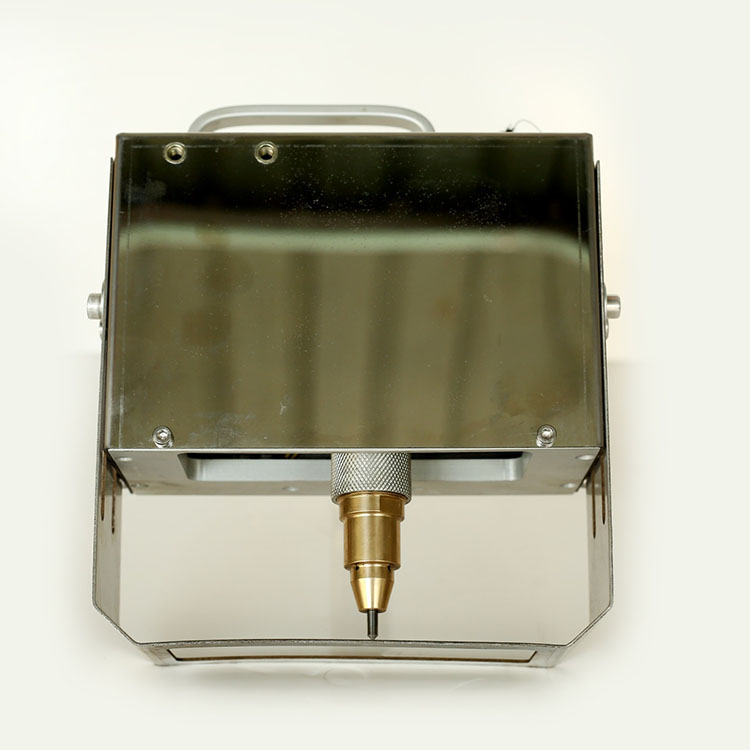

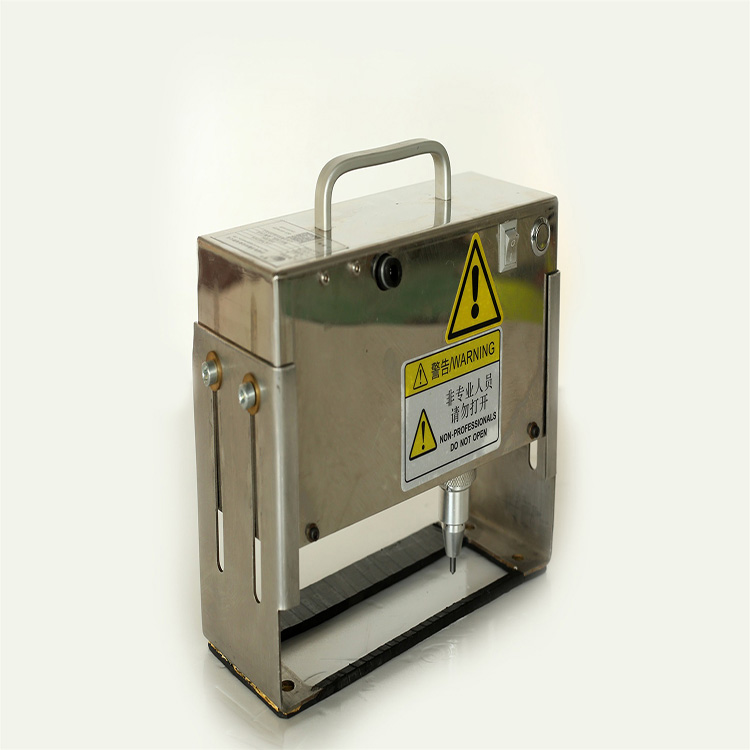

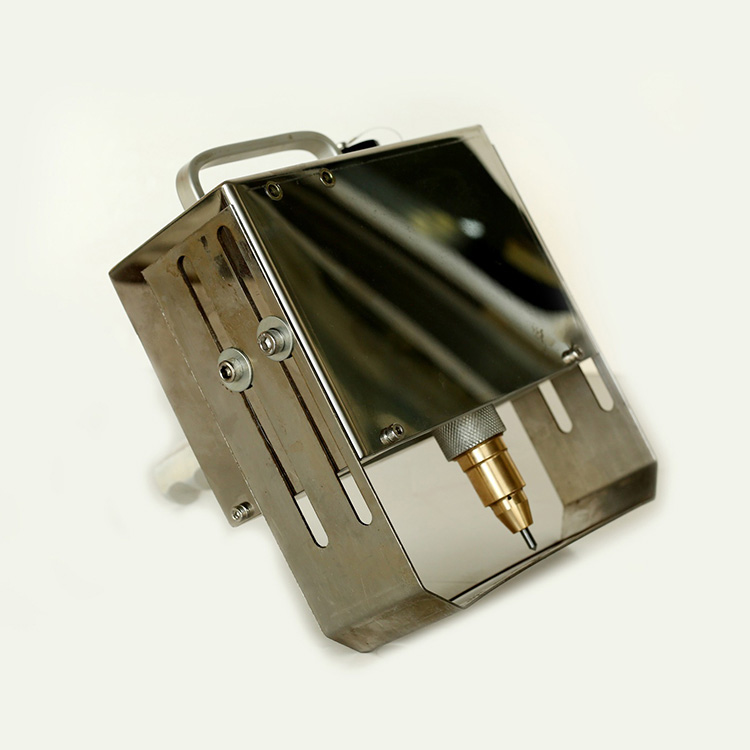

LYQD-SC1503A: The lightest and high-accuracy pneumatic handheld marking machine


Potable, easy-operating:

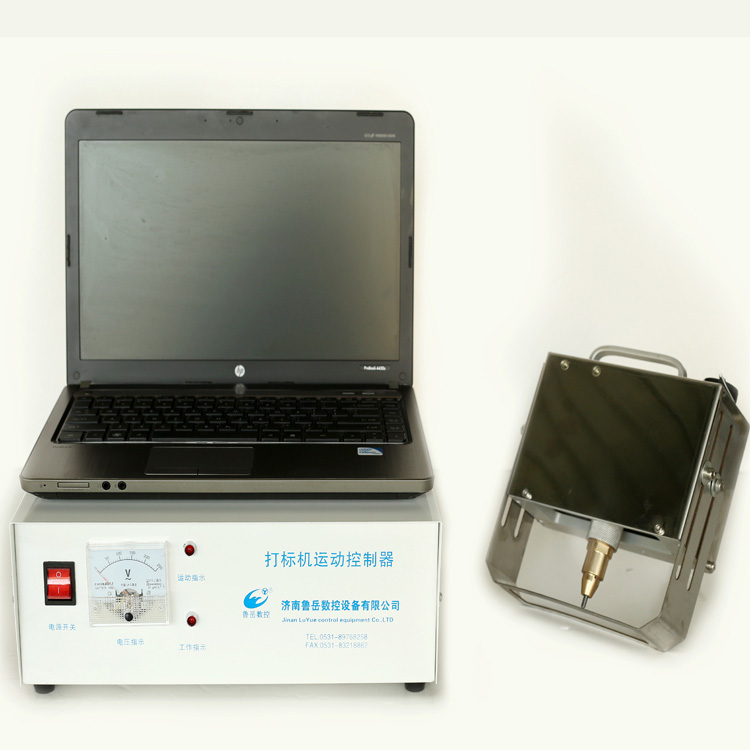

LYQD-SC1503A, machine head weighting only 2.6KG, with customized fittings bracket to fit different marking work piece. With Windows style human-computer interaction operating system, LYQD-SC1503A make the marking process easy and convenient.


High-performance, durable

LYQD-SC1503A could give your product a permanent and durable marking performance. LYQD-SC1503A equipping high precision stepping motor and single guide rail, makes little working noise and high-performance. With stainless steel frame, 22cm*18cm*8cm machine head size and 80mm*30mm - 150mm*30mm marking size, LYQD-1503A could fit most marking pieces and terrible, narrow working environment, especially for the car VIN code.


Abundant marking elements

The operating system support text, matrix, vector graph with the serial, VIN, PIN, VCode, date time, etc coder type to fit different kinds of workers.


Hardware Features

Model LYQD-SC1503A
Marking type Pneumatic handheld
Air pressure 0.2-0.6Mpa
Dimensions 22cm*18cm*8cm
Weight 2.6KG
Power supplier 220V, 50Hz, two-phase power
Marking area 80mm*30mm, 120mm*30mm, 150mm*30mm
Marking depth 0.01-0.2mm


Component Features

Stepping motor Digital drive Yamayama, Japan
Guide rail Hiwin, Taiwan, China
Needle Tungsten steel, Japan
Fittings Standard and customized
Electromagnetic marking Assembly Germany



1. Customized and OEM orders are supported.
2. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors, etc.
3. No MOQ required.
4. Sincerely looking for distributors all over the world.
