Handheld Mopa Laser Cleaning Machine or Metal Rust Oil Dust

Handheld Mopa Laser Cleaning Machine or Metal Rust Oil Dust MOPA pulse adjustable knapsack cleaning machine, more suitable for precision cleaning, rust, paint, oil, graffiti and other metal, wood, glass, stone and other surface cleaning treatment, will not cause high temperature burning and blackening phenomenon.

Send Inquiry

Product Description

MOPA pulse adjustable knapsack cleaning machine, more suitable for precision cleaning, rust, paint, oil, graffiti and other metal, wood, glass, stone and other surface cleaning treatment, will not cause high temperature burning and blackening phenomenon.

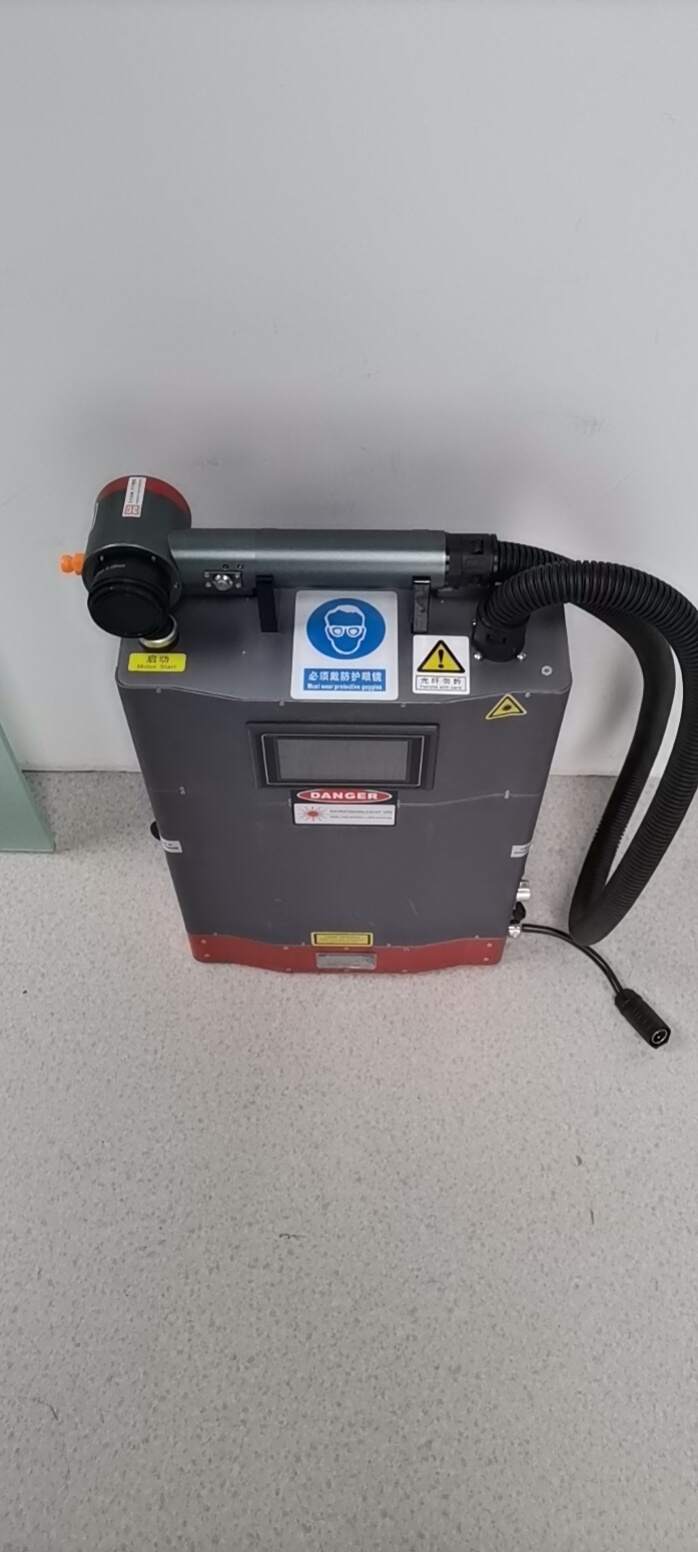

Backpack Pulse laser cleaning machine 100W

Net weight: 16kg
							Laser head weight: 0.75kg


100w backup Laser Cleaning Features

						---Non-contact cleaning, does not damage the parts matrix;
---Precise cleaning, which can realize selective cleaning of precise position and precise size;
---No need for any chemical cleaning solution, no consumables, safety and environmental protection;
---Easy to operate, can be hand-held or cooperated with manipulator to realize automatic cleaning;
---Ergonomic design, the labor intensity of operation is greatly reduced;
---The laser cleaning system is stable and requires almost no maintenance;


Operating environment
Supply voltage	Single-phase 220V±10%, 50/60Hz AC
System power consumption	Less than 500W
Working temperature	0℃～40℃
Working environment humidity	≤80%
Optical parameters
Withstands average laser power	≤100W
light transmittance	≥98%
Laser power adjustment	10%-100% continuous gradient adjustable
Laser pulse frequency adjustment	1kHz-4000kHz continuous gradient adjustable (support customization)
Laser pulse width adjustment function	support
Focal length	160mm
Incident spot diameter	≤10mm
Cleaning head, galvanometer, field lens parameters
Cleaning head size	As shown in Figure 2.1、2.2, the special QCS connector supports customization
Cleaning head weight	Less than 0.75Kg
Scan width	0mm-100mm optional
Scanning frequency	Maximum not less than 300Hz
Maximum scan line speed	About 30m/s
Vibration lens and mirror material	Quartz
Mechanical parameters
Machine size (length, width and height)	336 * 129 * 540mm
Net weight	16kg
Laser head weight	0.75kg
