Why Is a Portable Pneumatic Dot Peen Marking Machine the Ideal Solution for Heavy and Hard-to-Move Workpieces?

In industrial manufacturing, marking heavy or bulky workpieces—such as steel plates, large pipes, flanges, and vehicle frames—presents a unique challenge. Traditional desktop marking machines are often impractical for these applications. The Portable Pneumatic Dot Peen Marking Machine from Luyue offers a practical solution: a handheld, high-depth marking device that can be brought directly to the workpiece. This article examines the features that make this machine a versatile choice for industries ranging from metal fabrication to oil and gas, exploring its key specifications, design advantages, and the applications where it delivers significant value.

The Challenge of Marking Heavy Workpieces

Product traceability is essential in modern manufacturing. From serial numbers and VIN codes to logos and production dates, permanent marking ensures quality control, regulatory compliance, and brand identification. However, for large or heavy components, moving the workpiece to a stationary marking machine is often impractical, time-consuming, or even impossible.

Portable marking machines address this challenge by bringing the marking capability directly to the workpiece. Among the various technologies available, pneumatic dot peen marking is a proven method that uses a stylus to indent the surface, creating permanent, durable characters that can withstand harsh environments and subsequent surface treatments like painting or coating.

Jinan Luyue CNC Equipment Co., Ltd. is a Chinese manufacturer specializing in laser, pneumatic, and electric marking equipment. The company has developed a range of Portable Pneumatic Dot Peen Marking Machines designed for mobility and depth. These machines are widely used in steel structure fabrication, pipe marking, flange identification, and heavy machinery manufacturing. This article examines the key features, specifications, and applications that make these machines a practical choice for industrial marking needs.

Technical Specifications at a Glance

Below is a summary of the key specifications for the Portable Pneumatic Dot Peen Marking Machine from Luyue, based on models like the LYQD-G1508 and LYQD-B1508.

How Does a Portable Pneumatic Dot Peen Marking Machine Work?

Understanding the operating principle helps explain why these machines are capable of producing permanent, deep marks on hard materials.

Core Working Principle

The machine operates through a coordinated process. A computer controls the movement of the marking needle in the X and Y axes according to a pre-programmed graphic or character trajectory. Simultaneously, the needle performs high-frequency impact motions on the workpiece surface, driven by compressed air. This combination of precise positioning and percussive force creates a series of indentations that form the final character or graphic.

Control Methods

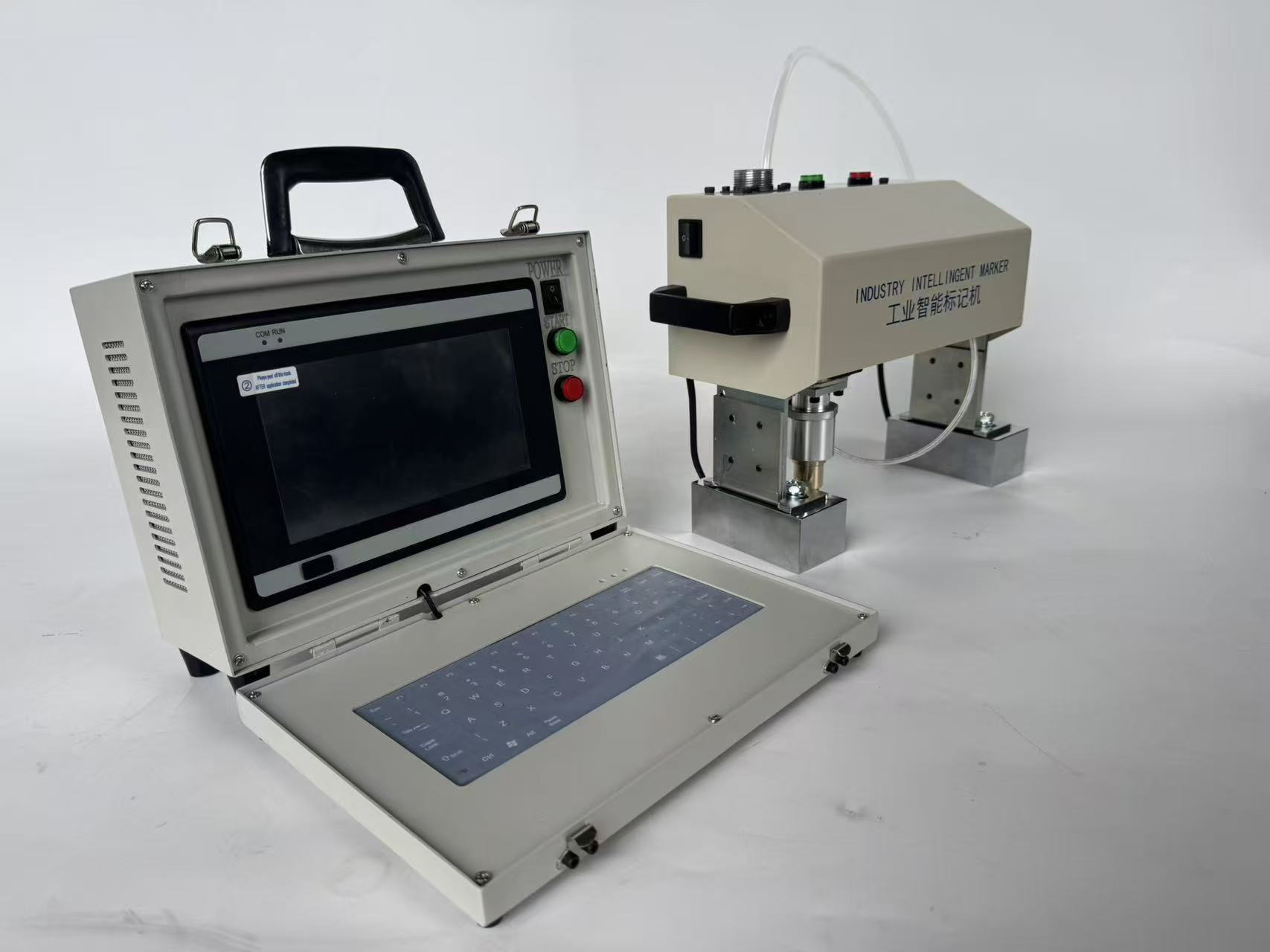

These machines are typically controlled via a computer using user-friendly software. For increased flexibility in industrial environments, many portable models also offer offline functionality. Once the marking content is uploaded, the machine can operate without a continuous computer connection, which is beneficial for production lines. Some advanced models even integrate a 7-inch touchscreen controller for standalone operation.

Key Features and Advantages

The Portable Pneumatic Dot Peen Marking Machine from Luyue incorporates several features that contribute to its performance, durability, and ease of use.

Precision and Durability

The marking head's base components are manufactured using precision molds, ensuring high motion accuracy and producing aesthetically pleasing, clear characters. The machine employs imported linear motion guide rails that are self-lubricating and dust-proof, minimizing wear and ensuring long-term stability.

High-Quality Components

Luyue uses internationally sourced components to enhance reliability. The pneumatic system utilizes an American MAC high-speed solenoid valve, with a service life of up to 120 million operations. The marking needle is made from high-speed powder metallurgy steel with a hardness of up to HRA92, capable of printing 200,000 to 600,000 characters before needing replacement or sharpening. The limit switch is sourced from Japan's OMRON.

Practical Design for Industrial Use

The handheld design allows operators to mark heavy, immovable workpieces directly on-site. The machine is relatively lightweight, with marking heads weighing around 2.6kg, reducing operator fatigue. It is suitable for marking on both flat and curved surfaces. The machine can mark a wide range of content, including English letters, numbers, Chinese characters, graphics, and barcodes.

The Luyue Manufacturing Advantage

Jinan Luyue CNC Equipment Co., Ltd. has been a domestic R&D and manufacturing enterprise specializing in marking equipment. The company has a team of senior technical talents in machinery, electronics, and software, enabling them to customize solutions for a wide range of customer needs. Their product line includes pneumatic, laser, and electric marking machines, demonstrating broad expertise in the field.

The company has a strong track record, having developed specialized coding equipment for major manufacturers like Beiqi Foton Motor Company and introduced innovative handheld marking machines to various industries. Key aspects of the Luyue advantage include:

• High-quality manufacturing with precision-molded marking heads and imported components for reliability.

• Proven reliability with an average machine lifespan of 8-10 years and a mean time between failures exceeding 15,000 hours.

• Comprehensive quality assurance backed by ISO 9000 certification and modern production lines.

• Flexible customization with support for OEM orders based on customer logos, functional requirements, and color preferences.

• Global reach with products exported to Europe, Southeast Asia, and other regions.

Frequently Asked Questions

Q: What is the maximum marking depth achievable with this machine?

A: The marking depth is adjustable and can reach up to 1.2mm, depending on the hardness of the material being marked. This depth is suitable for applications where parts will undergo subsequent painting or coating.

Q: Can this machine be used on curved surfaces like pipes?

A: Yes, the portable machine is designed to mark both flat and curved surfaces, such as pipes and flanges. Specialized fixtures, like V-shaped magnets, can be used to secure the machine to round workpieces.

Q: Is a computer always required to operate the machine?

A: While a computer is typically used for programming, many portable models support offline functionality. Once the marking content is programmed, the machine can operate without a continuous computer connection.

Q: What kind of maintenance does the machine require?

A: The machine is designed for durability. The self-lubricating guide rails minimize wear, and the pneumatic components are built for long life. The marking needle can be resharpened and reused, extending its service life significantly.

Conclusion

The Portable Pneumatic Dot Peen Marking Machine from Luyue offers a practical and reliable solution for industrial marking challenges. By combining a handheld, lightweight design with the capability to produce deep, permanent marks, it addresses the needs of industries that work with large, heavy, or immovable workpieces. The machine's robust construction, use of high-quality international components, and thoughtful design features ensure consistent performance and long service life.

For manufacturers in metal fabrication, oil and gas, automotive, and other heavy industries, this marking technology provides a means to ensure traceability, meet regulatory requirements, and maintain quality standards without the logistical burden of moving heavy parts to stationary equipment.

If you are looking for a reliable marking solution for heavy workpieces, or if you have questions about customization and integration, we encourage you to contact us today. The sales and technical team can provide product specifications, application guidance, and competitive pricing tailored to your specific needs. Reach out through the company website or email to start the conversation.
