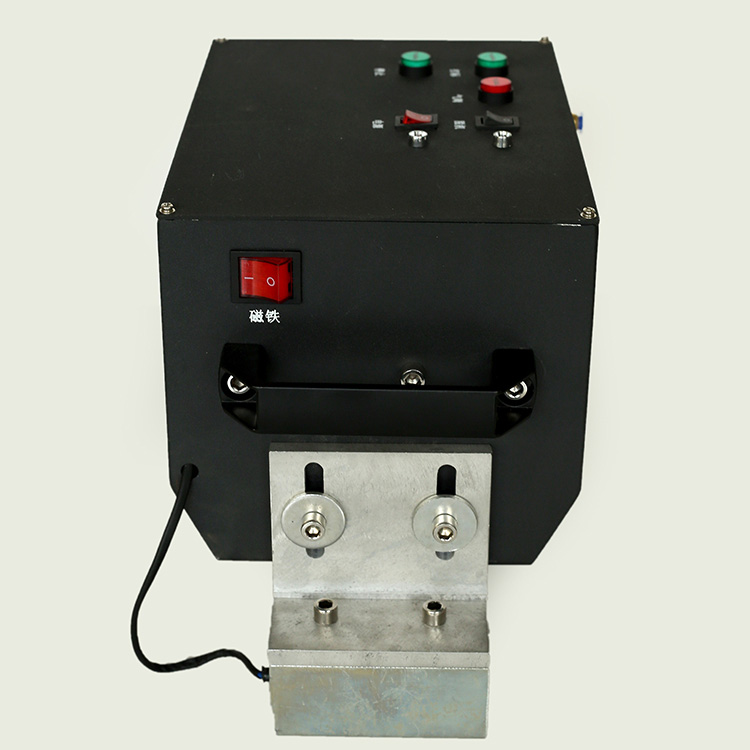

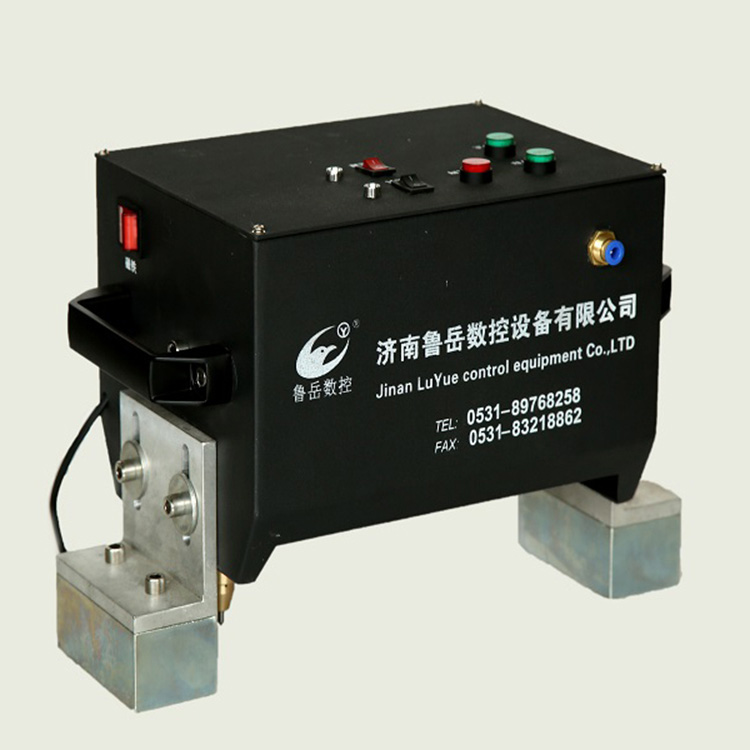

Pneumatic Dot Peen Marking Machine

Pneumatic dot peen marking machine is industrial product, mainly used for metal fat board parts and curved parts and motorcycle parts vin number marking, mechanical metal parts engraving, and other industrial medium and big size parts engraving and marking. It is very helpful for your product identification traceability.

The whole machine adopts imported industrial components, with thickness machine case ensure the machine is sturdy and durable with excellent marking accuracy.

Work Principle:

The computer controls the marking needle to move in the X, Y two-dimensional plane according to the trajectory of the graphic characters edited by the computer. At the same time, the marking needle performs high-frequency impact motion on the workpiece, thereby forming a corresponding on the workpiece. Graphic or characters.

Parameters:

1). Marking range: 150mm × 80mm

2). Marking depth: 0.01-2mm

3). Driving voltage: DC24V

4). Power supply mode: Pneumatic.

5). Print content: Any Chinese and English characters and numbers. Graphics

6). Print effect: clear and beautiful

7). Any graphic that containing in the CAD

8）The machine supports reading data directly from the U diskor computer

9). Machine weight: 10kgs, Dimention: 26cm×19cm×23.5cm
