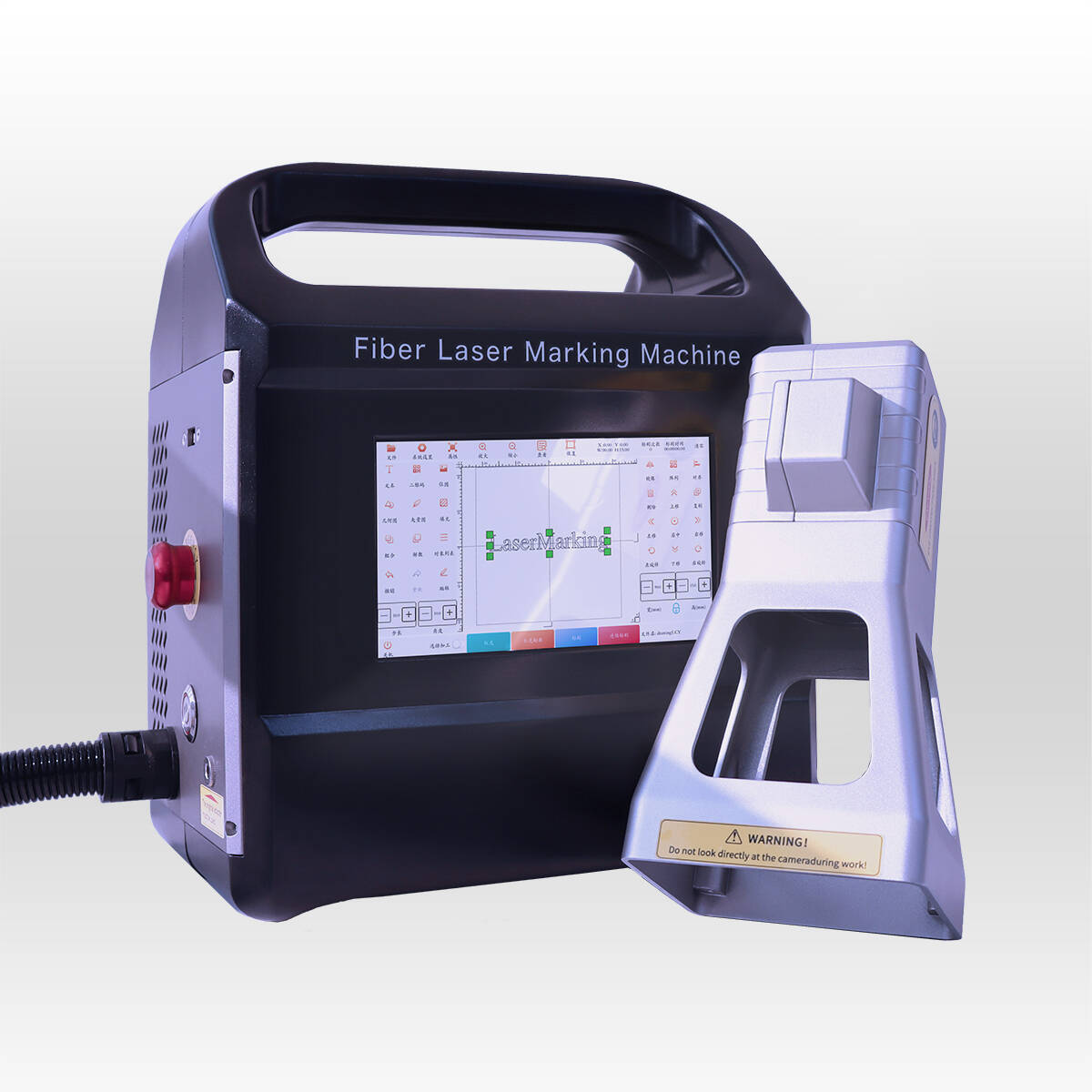

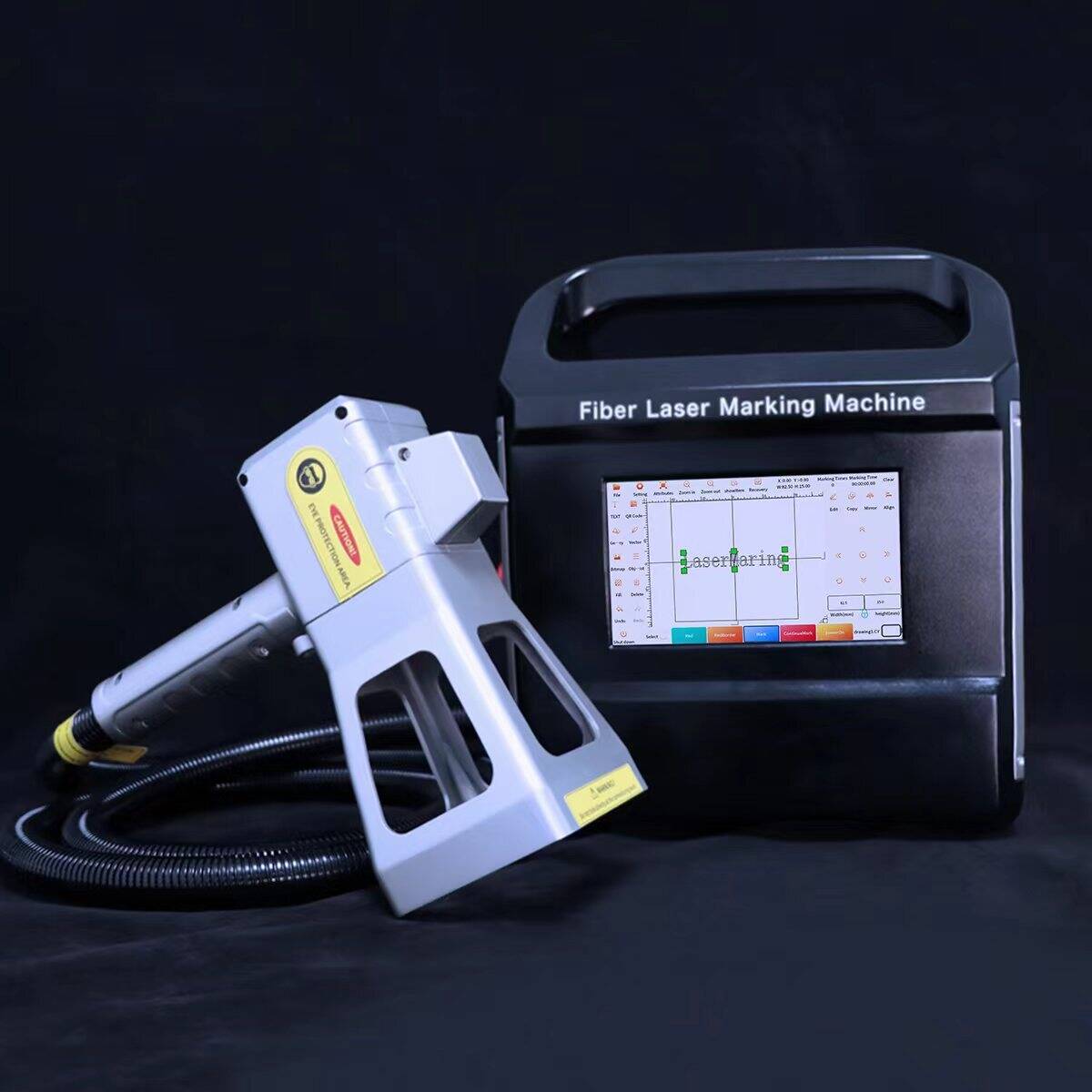

portable lithium battery fiber laser marking machine for metal

Portable lithium battery fiber laser marking machine for metal，LYF-B 20w 30w 50w serials handheld fiber laser marking machine is the new design by Luyue CNC, with small construct, compact design,light in weight, also with plug-in power source and embedded battery source for optional, help make the laser marking machine to be marvelous tools for big size, immovable products or construct continuously operation work.

The fiber laser marking machine with advantages as below:

1. The laser marking machine has the characteristics of quick start and easy operation.

2. The focal length fixed focal length cover is adopted, and there is no need to manually adjust the focal length, which greatly improves the work efficiency.

3. Energy saving settings.

The machine enters the standby state after 10 seconds of no operation, and then presses the light-emitting button of the handle to power on remotely. There is no need to click the power-on button on the screen separately, which makes the operation more convenient and prolongs the
service life of the machine.

4. Solve the problem of not working without power supply.

The built-in 24V12AH lithium battery can work normally under complex conditions, with a full battery life of 6-8 hours.

5. The handheld laser marking machine is light in weight and small in size,which is easy to carry.

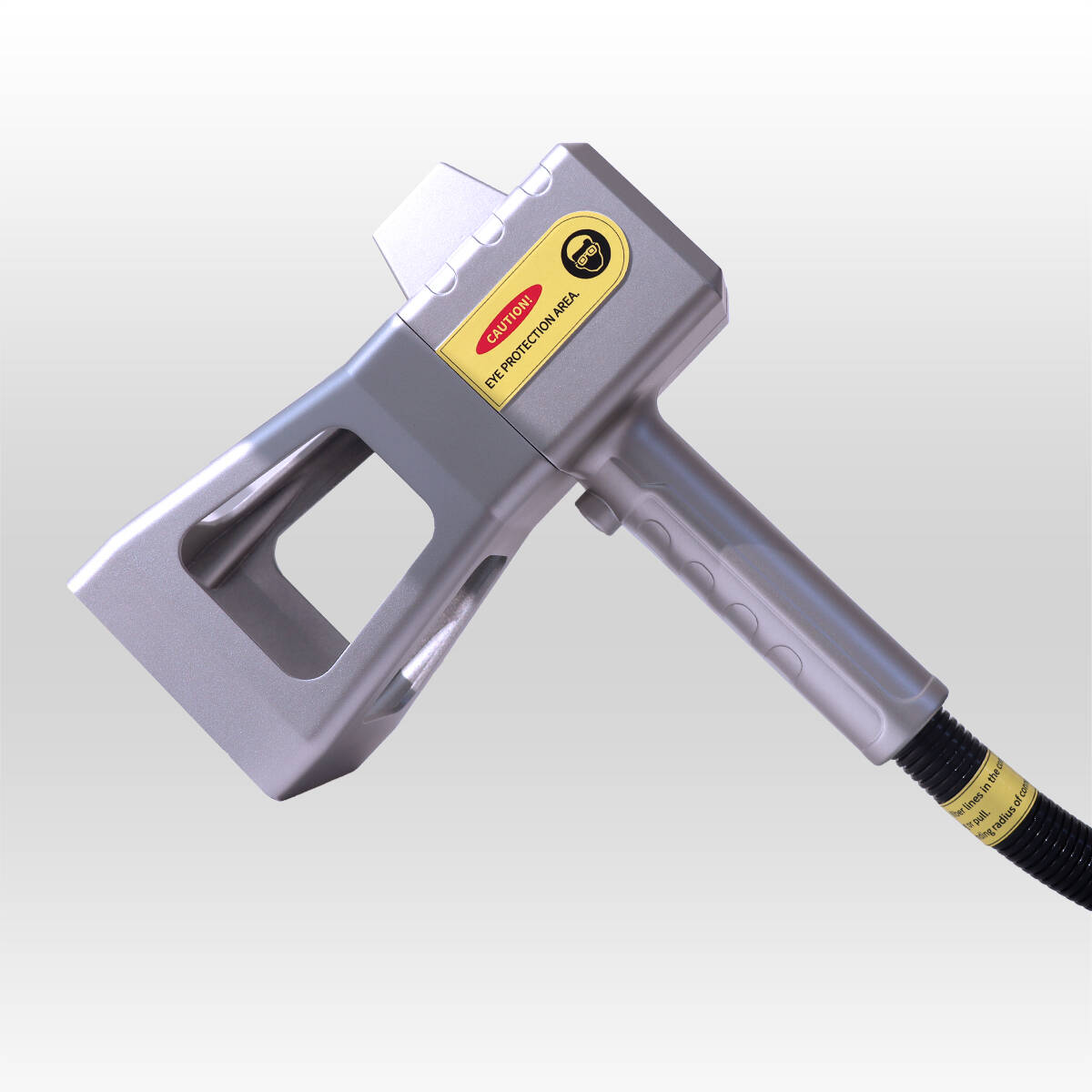

It is used in narrow, outdoor and special space operations, especially for marking objects that are inconvenient to move. Just align the handle with the workpiece and press the switch to easily achieve marking.The handle weighs 1kg, which is very convenient for both men and women to operate.

6. Maintenance-free.

Long-term work, the dust of laser marking will contaminate the lens, usually just wipe the lens with our wipe-piece provided.

Mini-handheld Fiber Laser Marking Machine

1. Small size and light weight (6.4KG)

2. Support lithium battery offline marking

3. Support multiple file format types

4. With self-start and stop function. Prolong the life of lithium battery, the life and laser and galvanometer motor is longer.

5. Red light positioning, no need to adjust focus, easy operate, clearer marking.

6. Laser Power: 20w 30w 50w are available

7. Laser wavelength: 1064nm

8. Marking area: 60mm x 60mm, 100mm x 100mm

9. Operation interface: Embedded 7-inch touch screen. Linux operation system.
