Russian Operation System Electric Handheld Dot Peen Marking Machine 120mm*40mm

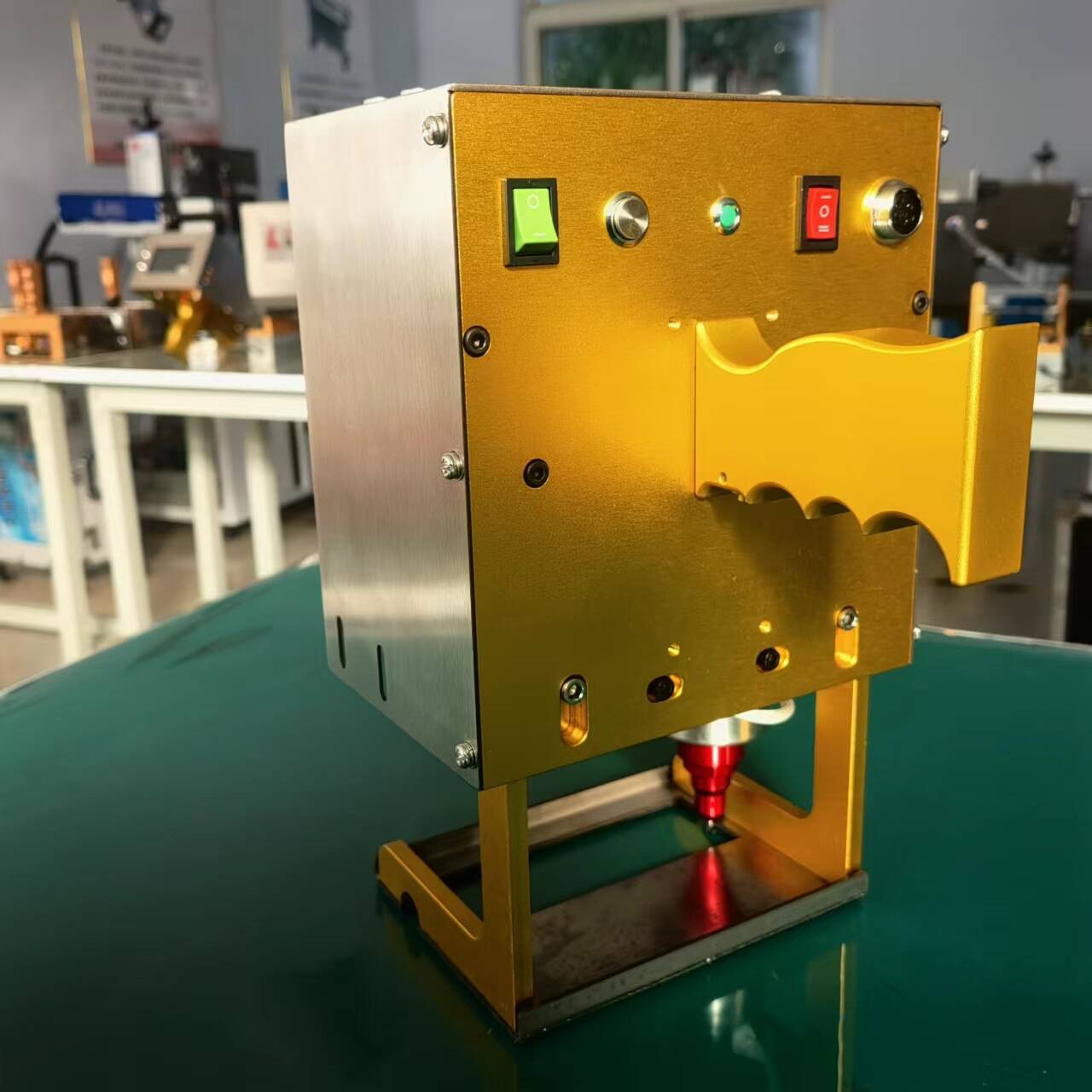

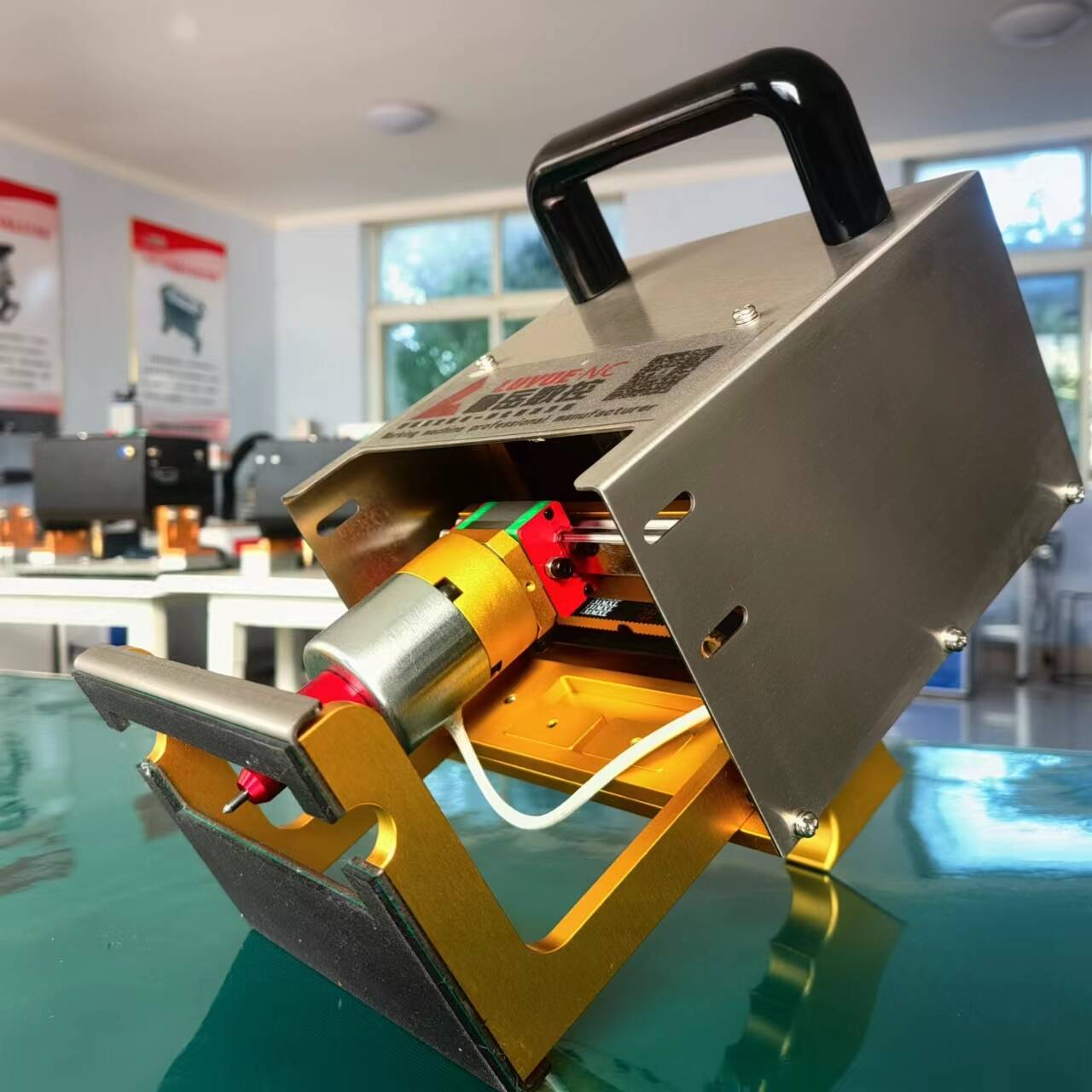

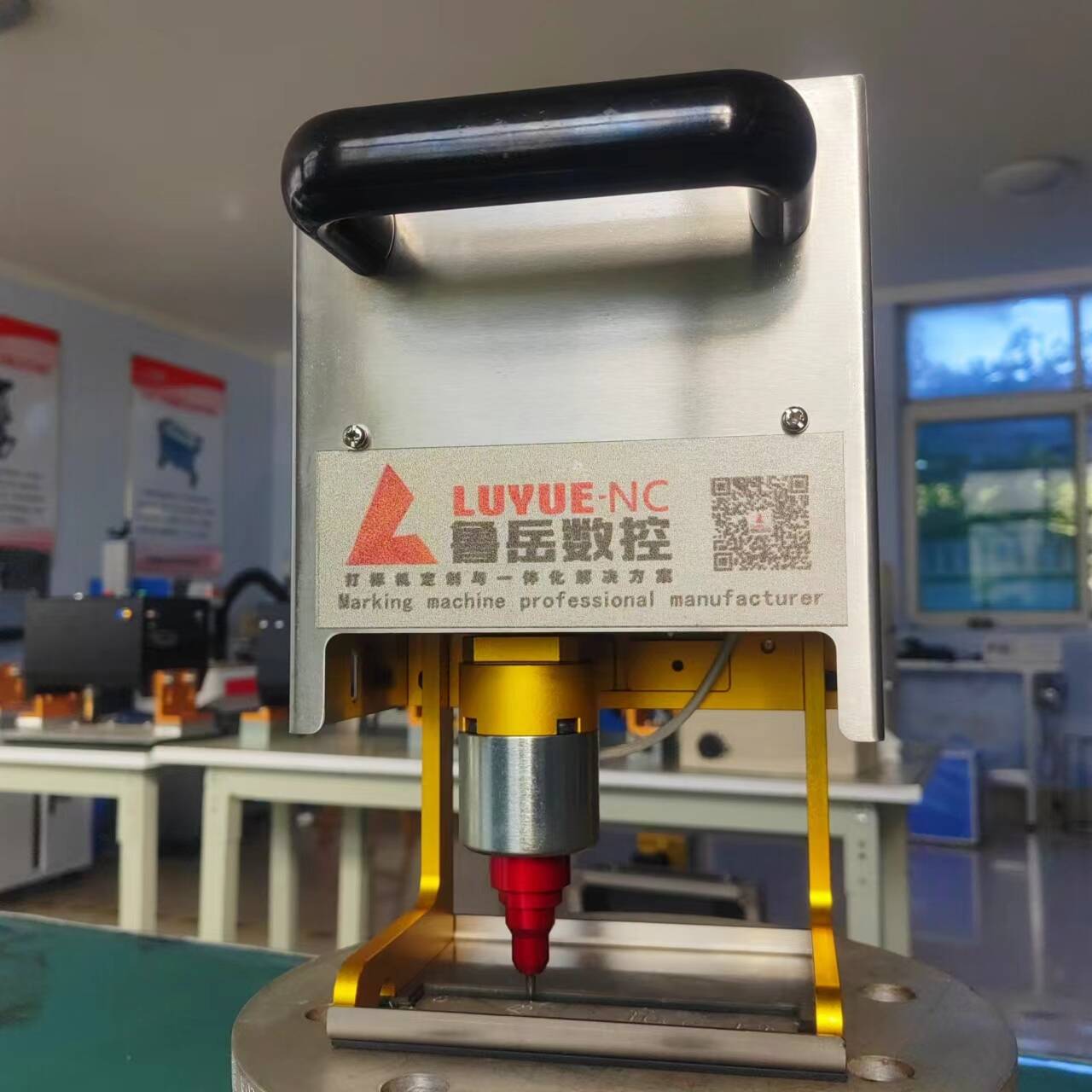

Russian Operation System Electric Handheld Dot Peen Marking Machine 120mm*40mm 120mm x 40mm Electric Handheld dot peen marking machine is a Newly designed model by Luyue CNC Equipment Co. Ltd. With the weight only 5kgs, can be handled with only on hand. No need to connect the computer, also with a USB interface which supports importing files. Almost all the main parts adopt imported components. We have been specialized in the Marking machine for more than 10 years. Our products have a good price advantage and steady quality. We are looking for distributors all over the world.

Send Inquiry

Product Description

Work Principle:

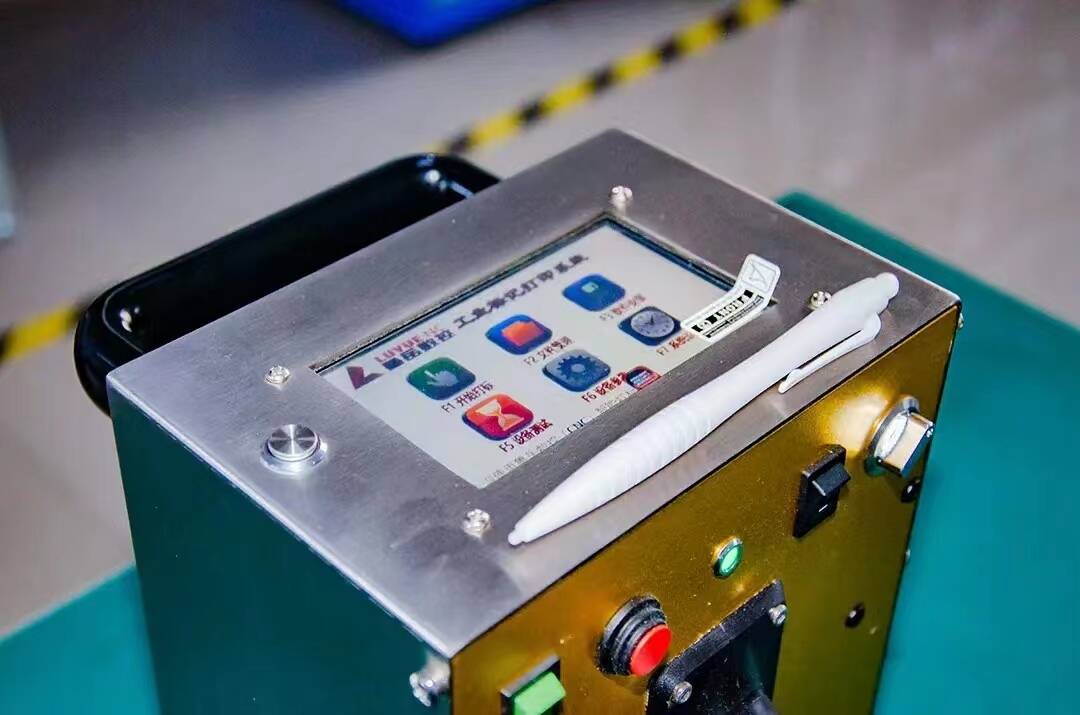

The computer (this machine is a micro touch screen computer) controls the marking needle to move in the X, Y two-dimensional plane according to the trajectory of the graphic characters edited by the computer. At the same time, the marking needle performs high-frequency impact motion on the workpiece, thereby forming a corresponding on the workpiece. Graphic or characters.

Parameters:

1). Marking range: 120mm × 40mm

2). Marking depth: 0.01-2mm

3). Driving voltage: DC24V

4). Power supply mode: Lithium Battery.

5). Print content: Any Chinese and English characters and numbers. Graphics

6). Print effect: clear and beautiful

7). Any graphic that containing in the CAD

8). The machine supports reading data directly from the U disk

9). Machine weight: 5kgs, dimention: 28cm *14.5cm*10.5cm
